SPEED...The Primary Factor In A Successful Attack

The TEGUH Marquee/Rapid Free Span is one type of the most functional, flexible, fast and economical tent and canopy.

  It is a structure that can be build rapidly and in a cost effective  way and easily expanded or move to another work place as portable shelter.

Marquee/Rapid Free Span is design from widths of 30m, 40m, 50m and up to 60m, this structure design with unlimited lengths and heights from 4m up to 15m.

Structure & Profile

Marquee Structure Drawing-01.png

Size Chart:

Marquee Structure Drawing-03.png

3m, 6m, 9m

10m, 15m

20m, 25m

Marquee Structure Drawing-02.png

30m

40m

50m

60m

Cover Material Specifications:

Base fabric



Weight

Surface

Treatment



Optional side walls

: Brand PVC-coated polyester textile

  with blackout (Made in Korea)

: 800gsm - 850gsm according to different brand

: Both side treated with acrylic lacquer, UV

  Resistant, fire retardant DIN 4102 B1

: Hard wall, soft wall or glass wall

Material Specifications:

Framework material



Eave Connection

: Hard pressed extruded anodised

  aluminium 6061/T6



: Hot-dipped galvanised pre-designed        fitting

Design Wind Speed:

Speed

: 100 - 120km/h

Application & Inspiration

Friends Camping
Friends Camping
Friends Camping
Friends Camping
Friends Camping
Garden Party
Fairytale Wedding

Product Specification


Marquee 3m

Size: 3m(W) x 3.60m(H)

Size

Clear Span Width: 3m

Eave Height: 3.1m

Ridge Height: 3.6m

Roof Pitch: 20 degrees

Bay Distance: 5m

Min.Tent Length: 5m

Max, Tent Length: Unlimited

Main Frame Profile: 98x60x3 (mm)

Material

Frame Work :

Hard press extruded anodized aluminium 6061/T6

Eave Connection:

Hot-Dip galvanised insert fitting/twin steel plates

Capacity

Sitting :  10 pax/bay

Round Table :  -

Engineering

Max. Allow Wind Speed : 100kmph


Marquee 10m

Size: 10.10m(W) x 5.43m(H)

Size

Clear Span Width: 10m

Eave Height: 3.8m

Ridge Height: 5.5m

Roof Pitch: 18 degrees

Bay Distance: 5m

Min.Tent Length: 10m

Max, Tent Length: Unlimited

Main Frame Profile: 155x60x3 (mm)

Material

Frame Work :

Hard press extruded anodized aluminium 6061/T6

Eave Connection:

Hot-Dip galvanised insert fitting/twin steel plates

Capacity

Sitting :  60 pax/bay

Round Table :  10 units/bay

Engineering

Max. Allow Wind Speed : 120kmph


Marquee 25m

Size: 25m(W) x 7.62m(H)

Size

Clear Span Width: 25m

Eave Height: 4m

Ridge Height: 7.7m

Roof Pitch: 18 degrees

Bay Distance: 5m

Min.Tent Length: 20m

Max, Tent Length: Unlimited

Main Frame Profile:

210x125x5 (mm) / 255x125x5 (mm)

Material

Frame Work :

Hard press extruded anodized aluminium 6061/T6

Eave Connection:

Hot-Dip galvanised insert fitting/twin steel plates

Capacity

Sitting :  160 pax/bay

Round Table :  30 units/bay

Engineering

Max. Allow Wind Speed : 120kmph

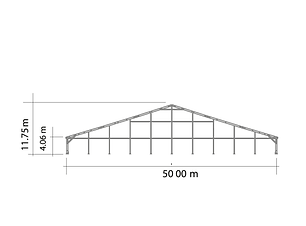

Marquee 50.png

Rapid Free Span 50m

Size: 50m(W) x 11.75m(H)

Size

Clear Span Width: 50m

Eave Height: 4m

Ridge Height: 11.7m

Roof Pitch: 18 degrees

Bay Distance: 5m

Min.Tent Length: 30m

Max, Tent Length: Unlimited

Main Frame Profile:

350x125x6/10 (mm)

Material

Frame Work :

Hard press extruded anodized aluminium 6061/T6

Eave Connection:

Hot-Dip galvanised insert fitting/twin steel plates

Capacity

Sitting :  340 pax/bay

Round Table :  65 units/bay

Engineering

Max. Allow Wind Speed : 120kmph


Marquee 6m

Size: 6m(W) x 4.12m(H)

Size

Clear Span Width: 6m

Eave Height: 3.1m

Ridge Height: 4.1m

Roof Pitch: 20 degrees

Bay Distance: 5m

Min.Tent Length: 5m

Max, Tent Length: Unlimited

Main Frame Profile: 98x60x3 (mm)

Material

Frame Work :

Hard press extruded anodized aluminium 6061/T6

Eave Connection:

Hot-Dip galvanised insert fitting/twin steel plates

Capacity

Sitting :  30 pax/bay

Round Table :  5 units/bay

Engineering

Max. Allow Wind Speed : 100kmph


Marquee 15m

Size: 15.15m(W) x 6.23m(H)

Size

Clear Span Width: 15m

Eave Height: 3.8m

Ridge Height: 6.3m

Roof Pitch: 18 degrees

Bay Distance: 5m

Min.Tent Length: 10m

Max, Tent Length: Unlimited

Main Frame Profile: 155x60x3 (mm)

Material

Frame Work :

Hard press extruded anodized aluminium 6061/T6

Eave Connection:

Hot-Dip galvanised insert fitting/twin steel plates

Capacity

Sitting :  90 pax/bay

Round Table :  15 units/bay

Engineering

Max. Allow Wind Speed : 120kmph

Marquee 30.png

Rapid Free Span 30m

Size: 29.38(W) x 8.86m(H)

Size

Clear Span Width: 30m

Eave Height: 4m

Ridge Height: 8.5m

Roof Pitch: 18 degrees

Bay Distance: 5m

Min.Tent Length: 25m

Max, Tent Length: Unlimited

Main Frame Profile:

255x125x5 (mm) / 300x125x5/6 (mm)

Material

Frame Work :

Hard press extruded anodized aluminium 6061/T6

Eave Connection:

Hot-Dip galvanised insert fitting/twin steel plates

Capacity

Sitting :  200 pax/bay

Round Table :  40 units/bay

Engineering

Max. Allow Wind Speed : 120kmph

Marquee 60.png

Rapid Free Span 60m

Size: 60m (W) x 13.30m(H)

Size

Clear Span Width: 60m

Eave Height: 4m

Ridge Height: 13.3m

Roof Pitch: 18 degrees

Bay Distance: 5m

Min.Tent Length: 50m

Max, Tent Length: Unlimited

Main Frame Profile:

350x125x6/10 (mm)

Material

Frame Work :

Hard press extruded anodized aluminium 6061/T6

Eave Connection:

Hot-Dip galvanised insert fitting/twin steel plates

Capacity

Sitting :  410 pax/bay

Round Table :  80 units/bay

Engineering

Max. Allow Wind Speed : 120kmph


Marquee 9m

Size: 9m(W) x 4.65m(H)

Size

Clear Span Width: 9m

Eave Height: 3.1m

Ridge Height: 4.7m

Roof Pitch: 20 degrees

Bay Distance: 5m

Min.Tent Length: 5m

Max, Tent Length: Unlimited

Main Frame Profile: 98x60x3 (mm)

Material

Frame Work :

Hard press extruded anodized aluminium 6061/T6

Eave Connection:

Hot-Dip galvanised insert fitting/twin steel plates

Capacity

Sitting :  50 pax/bay

Round Table :  10 units/bay

Engineering

Max. Allow Wind Speed : 100kmph

Marquee 20.png

Marquee 20m

Size: 20m(W) x 6.89m(H)

Size

Clear Span Width: 20m

Eave Height: 4m

Ridge Height: 7m

Roof Pitch: 18 degrees

Bay Distance: 5m

Min.Tent Length: 20m

Max, Tent Length: Unlimited

Main Frame Profile: 210x125x5 (mm)

Material

Frame Work :

Hard press extruded anodized aluminium 6061/T6

Eave Connection:

Hot-Dip galvanised insert fitting/twin steel plates

Capacity

Sitting :  130 pax/bay

Round Table :  20 units/bay

Engineering

Max. Allow Wind Speed : 120kmph

Marquee 40.png

Rapid Free Span 40m

Size: 39.71m(W) x 10.48m(H)

Size

Clear Span Width: 40m

Eave Height: 4m

Ridge Height: 10m

Roof Pitch: 18 degrees

Bay Distance: 5m

Min.Tent Length: 30m

Max, Tent Length: Unlimited

Main Frame Profile:

300x125x5/6 (mm)

Material

Frame Work :

Hard press extruded anodized aluminium 6061/T6

Eave Connection:

Hot-Dip galvanised insert fitting/twin steel plates

Capacity

Sitting :  270 pax/bay

Round Table :  55 units/bay

Engineering

Max. Allow Wind Speed : 120kmph
